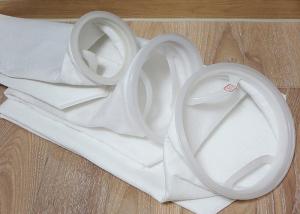

1 - 200 Micron PP PE Industrial Filter Bag Filter Sock 200 Micron
Quick Detail:
Materials:
1. Polypropylene felt
2. Polyester felt
3. Nylon monofilament
4. Polyester monofilament
Micron rating : 0.5um ~800um
Good anti abrasion
High temperature grade
Anti acid ,anti alkali, chemical resistance
High porosity ,good air permeability
Laminated compound,grads counterchange
Description:
Low temperature resistance ( 88-110 ℃)
Excellent resistant to hydrolysis, acids and alkalies.
Smooth surface, more defined pore size and good air permeability
Lower fiber release, Lower density,High mechanical characteristics
Specifications:
#1-----(7"x16") -----¢180*410mm
#2-----(7" x 32") -----¢180*810mm
#3-----(4"x 8 1/4") -----¢102*210mm
#4-----(4"x 14") -----¢102*356mm
| Material | PE,PP,NMO,PTFE |
| Cuff | PP Lock , Stainless steel |
| Relative filtration pore size | 0.5, 1,5, 10, 25, 50, 100, 200 µm |
| Type | various specifications |
| Airtight method: | Hot Melt, reverse sewing |
| Effective filtration area | various specifications |
| Others | special requirement of diameter and collar extension can be customized |
Hardware:
1. Carbon steel retainer is standard on bags. Stainless steel, and Polypropylene Rings are available as an option.
2. Polypropylene Flange Tops are also available.
Specifications:
| Micron Rating | Polyester
Felt | Polypropylene
Felt | Nylon Monofilament | Polyester Monofilament |
| 1 | √ | √ | | |
| 5 | √ | √ | | |
| 10 | √ | √ | | |
| 25 | √ | √ | | √ |
| 45 | | | √ | √ |
| 50 | √ | √ | √ | √ |
| 55 | | | √ | √ |
| 75 | √ | √ | √ | √ |
| 100 | √ | √ | √ | √ |
| 125 | √ | √ | √ | √ |
| 150 | √ | √ | √ | √ |
| 200 | √ | √ | √ | √ |
| 250 | | | √ | √ |
| 300 | | | √ | √ |
| 400 | | | √ | √ |
| 600 | | | √ | √ |
| 800 | | | √ | √ |
| 1200 | | | √ | √ |
| Material Physical and chemical Performance |
| Material | PE | PP | MO | RY | PTEE |
| Strong Acid | Very good | excellent | poor | general | excellent |
| Weak Acid | Very good | excellent | general | good | excellent |
| StrongAlkalis | poor | excellent | excellent | Very good | excellent |
| Weak Alkalis | Very good | excellent | excellent | good | excellent |
| Solvents | Very good | poor | good | good | Very good |
| Oxidising Agent | good | poor | general | good | Very good |
| Abrasion Resistance | Very good | very good | excellent | general | poor |
Applications:
1. Paints & lacquer industry
2. Wastewater treatment
3. Pharmaceutical industry
4. Food industry
5. Chemical industry
6. Beer, wine & spirit industry
7. Adhesive.
Hangzhou philis filter technology co.,ltd. has grown up to be one of leading manufacturer on dust filtration&spare parts in China.We have imported filter needle felt production line ASSELIN from France and we can produce very good quality non-woven products according customer's requirment.
Based on 8 needle felt production line ,our annual production ability can achieved 20,000 square meters per day . We can produce a large range of various filter fabric, such as polyester filter fabric, Acrylic filter fabric, Fiberglass filter fabric, PPS filter fabric, Nomex ,P84 ,PTFE ,woven filter fabric and so on.
The most important thing is that we introduced German high technology to develop the first filter bag production line in China. Which help most filter bag production factory save a lot of human lab our cost but promote the work effection . The advanced technology and simple operation way of automatic filter bag production line has won a lot of customer’s praise.
FAQ
1.How to Order?
2.How to assurance the product quality?
We will send the samples to you conform, and will produce the samples according to your satisfaction.
3.Can you provide free sample ?
Normally, our product need sample fee, But we will charge your sample fee as less as we can, even sometimes free sample available.However, you have to pay us the courier cost like: DHL.FEDEX.UPS.TNT...
4.Generally, what time the products can make delivery
In normal circumstances, the products can be delivered within two weeks.
5.Which shipment available?
Normally, we ship goods by sea,air and express. Special requirement also acceptable
By sea to your nearest sea port
. By air to your nearest air port
By express(UPS,DHL.FEDEX,TNT...) to your door
Remarks
1) The length of dust filter bags can be customized.
2) If your dust filter bag is different from our filter bag size, please send us your drawing size and the material which you need, we also produce the nonstandard filter bag.
3) Please send us your inquiry specification detail by email for quotation, thanks my friends.
